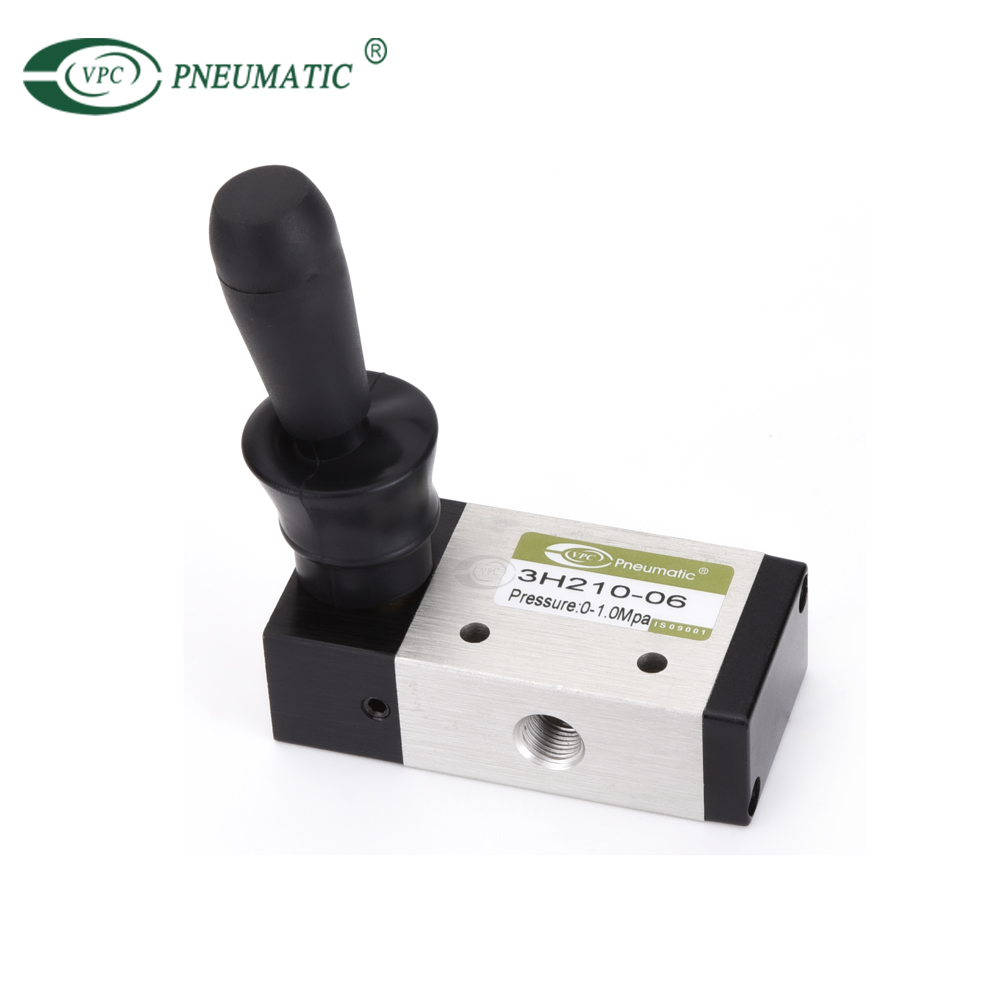

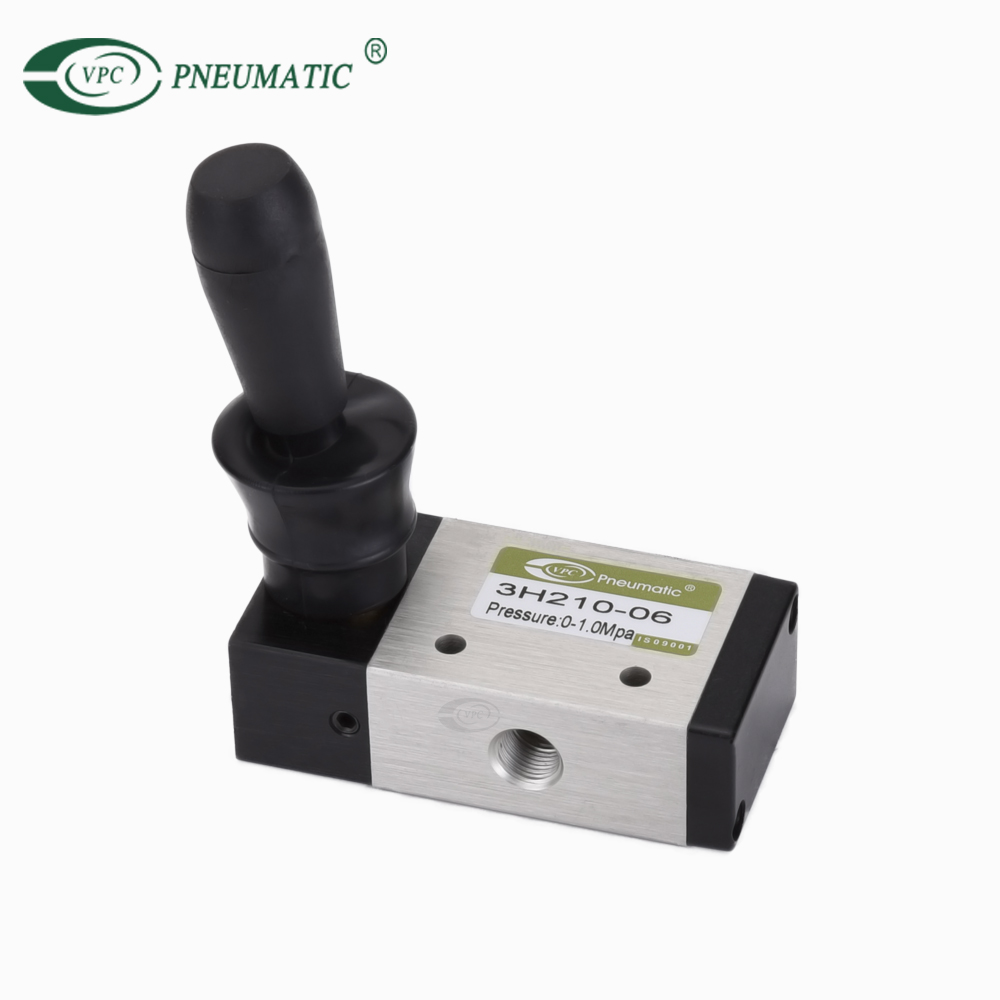

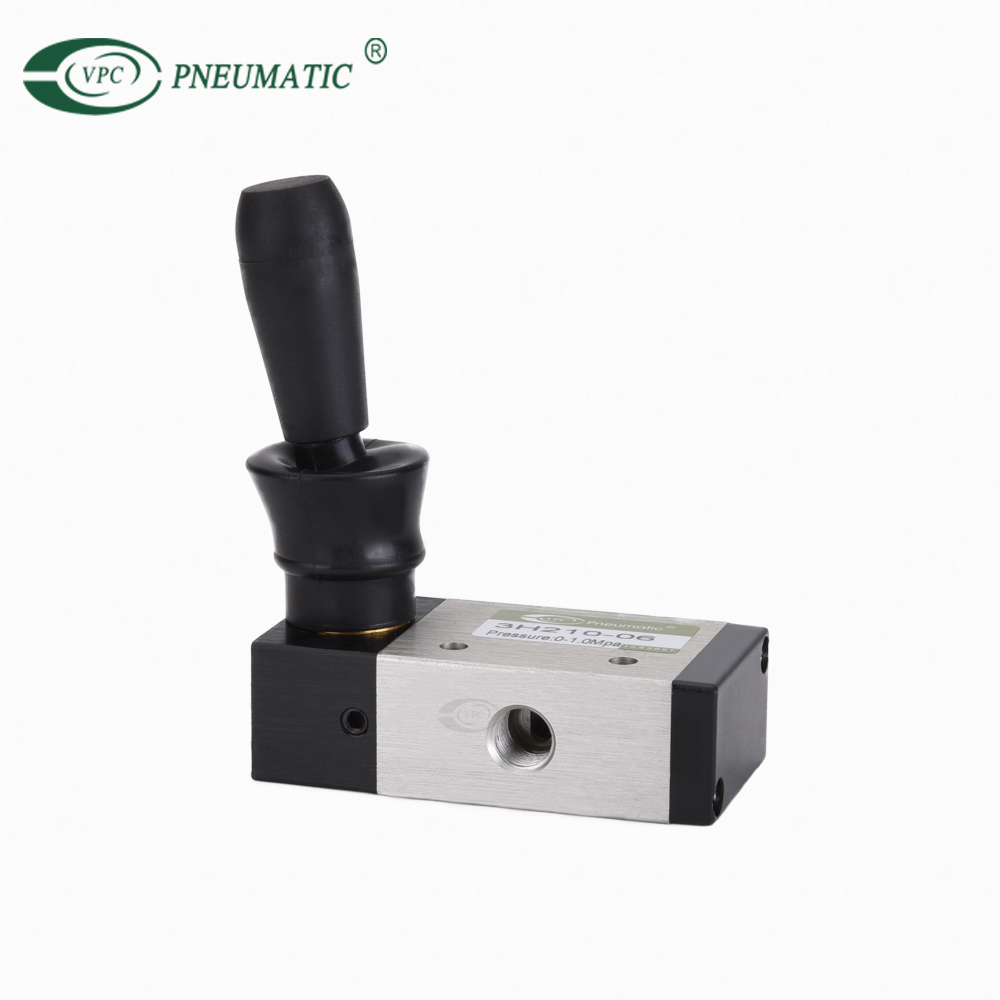

3H210-06
VPC
8481802190
| État de disponibilité: | |
|---|---|
Description du produit
| Moyen de travail | L'air pur |
| Pression de travail | 0-1.0MPA |
| Pression maximale | 1,5 MPA |
| Température de fonctionnement | -10-60 ℃ |
| Matériau du corps | Aluminium |
| Lubrification | Non |
| Modle | Taille de joint | Zone de section |
| 3h110-06 | G1 / 8 " | 12 mm² (CV = 0,67) |
| 3H210-06 | G1 / 8 " | 14 mm² (CV = 0,78) |
| 3H210-08 | G1 / 4 " | 16 mm² (CV = 0,89) |
| 3h310-08 | G1 / 4 " | 25 mm² (CV = 1,39) |
| 3h310-10 | G3 / 8 " | 30 mm² (CV = 1,67) |
| 3h410-10 | G3 / 8 " | 40 mm² (CV = 2,23) |
| 3h410-15 | G1 / 2 " | 50 mm² (CV = 2,79) |
| 4h110-06 | G1 / 8 " | 12 mm² (CV = 0,67) |
| 4h110-08 | G1 / 8 " | 14 mm² (CV = 0,78) |
| 4H210-06 | G1 / 4 " | 16 mm² (CV = 0,89) |
| 4H210-08 | G1 / 4 " | 25 mm² (CV = 1,39) |
| 4h310-08 | G3 / 8 " | 30 mm² (CV = 1,67) |
| 4h310-10 | G3 / 8 " | 40 mm² (CV = 2,23) |
| 4h410-15 | G1 / 2 " | 50 mm² (CV = 2,79) |
| 4h130c-06 | G1 / 8 " | 9 mm² (CV = 0,50) |
| 4H230C-08 | G1 / 4 " | 12 mm² (CV = 0,67) |
| 4h330c-10 | G3 / 8 " | 18 mm² (CV = 1,00) |
| 4h430c-15 | G1 / 2 " | 30 mm² (CV = 1,67) |
