| Moyen de travail: | |
|---|---|
| Pression de travail: | |
| Température de fonctionnement: | |
| Matériau du corps: | |
| Garantie de qualité: | |
Description du produit
Spécifications du produit
| Modèle | Taille des joints | Zone sectionnelle | Support de travail | Pression de service | Max. Pression | Température de fonctionnement | Matériau du corps | Lubrification |
| 3H110-06 | G1/8' | 12mm2 (CV=0,67) | L'air pur | 0~1,0 MPa | 1,5 MPa | -10 ~ 60 ℃ | Aluminium | NON |
| 3H210-06 | G1/8' | 14mm2 (CV=0,78) | ||||||
| 3H210-08 | G1/4' | 16mm2 (CV=0,89) | ||||||
| 3H310-08 | G1/4' | 25mm2 (CV=1,39) | ||||||
| 3H310-10 | G3/8' | 30mm2 (CV=1,67) | ||||||
| 3H410-10 | G3/8' | 40mm2 (CV=2,23) | ||||||
| 3H410-15 | G1/2' | 50mm2 (CV=2,79) | ||||||
| 4H110-06 | G1/8' | 12mm2 (CV=0,67) | ||||||
| 4H210-06 | G1/8' | 14mm2 (CV=0,78) | ||||||
| 4H210-08 | G1/4' | 16mm2 (CV=0,89) | ||||||
| 4H310-08 | G1/4' | 25mm2 (CV=1,39) | ||||||
| 4H310-10 | G3/8' | 30mm2 (CV=1,67) | ||||||
| 4H310-10 | G3/8' | 40mm2 (CV=2,23) | ||||||
| 4H410-15 | G1/2' | 50mm2 (CV=2,79) | ||||||
| 4H130C-06 | G1/8' | 9mm2 (CV=0,5) | ||||||

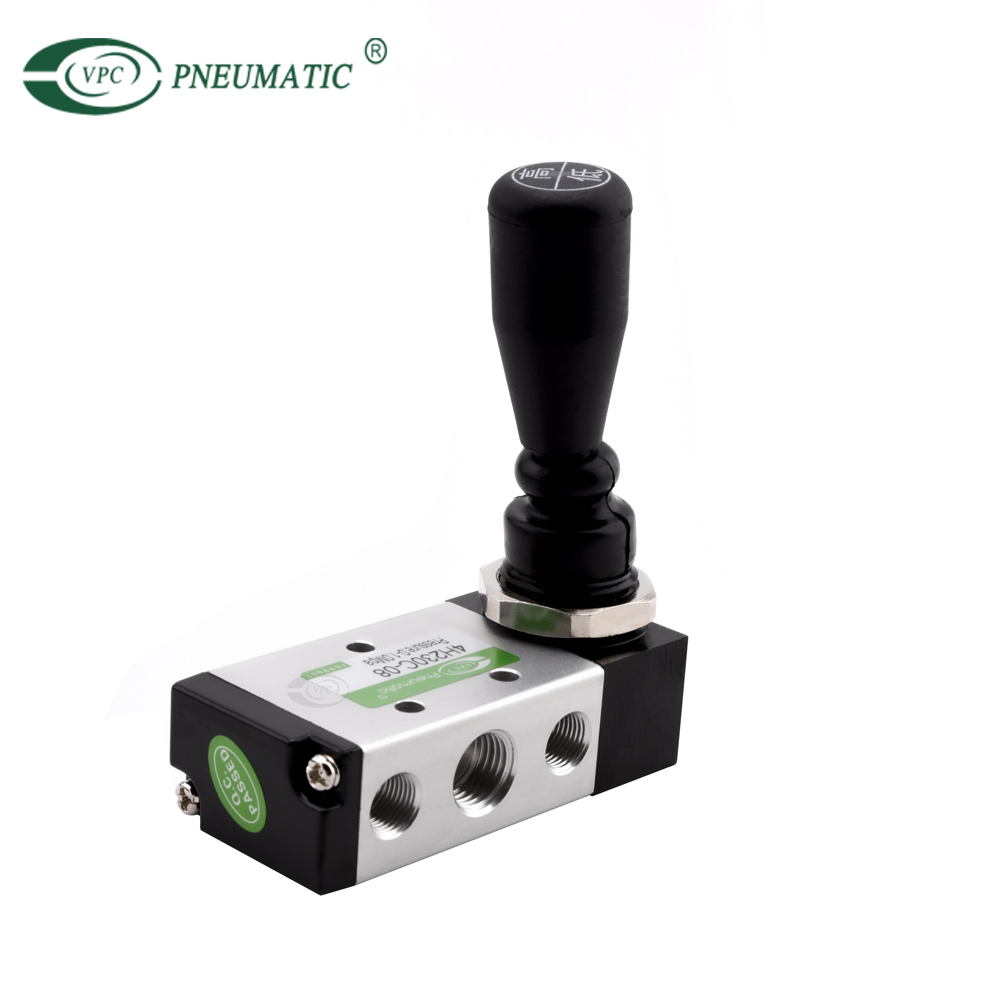

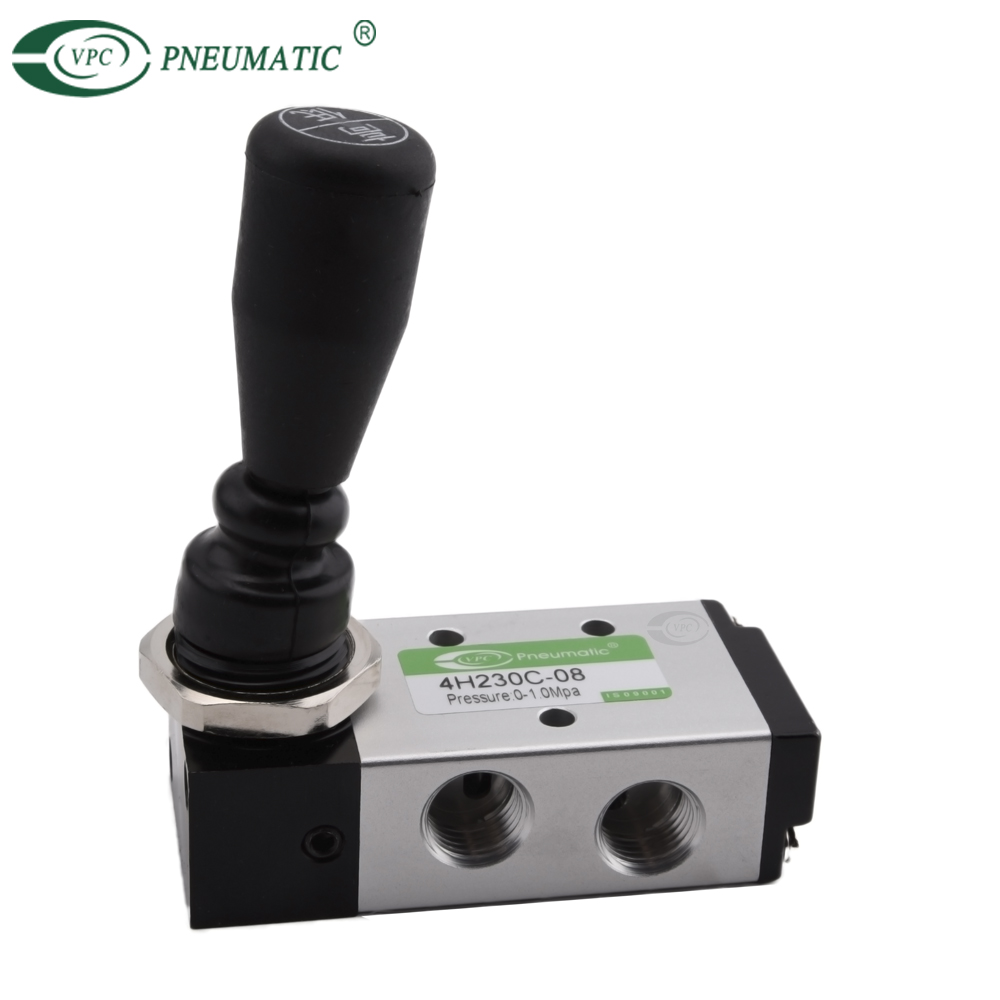

| 4H230C-08 | G1/4' | 12mm2 (CV=0,67) | ||||||
| 4H330C-10 | G3/8' | 18mm2 (CV=1,00) | ||||||
| 4H430C-10 | G1/2' | 30mm2 (CV=1,67) |
Dimensions principales
