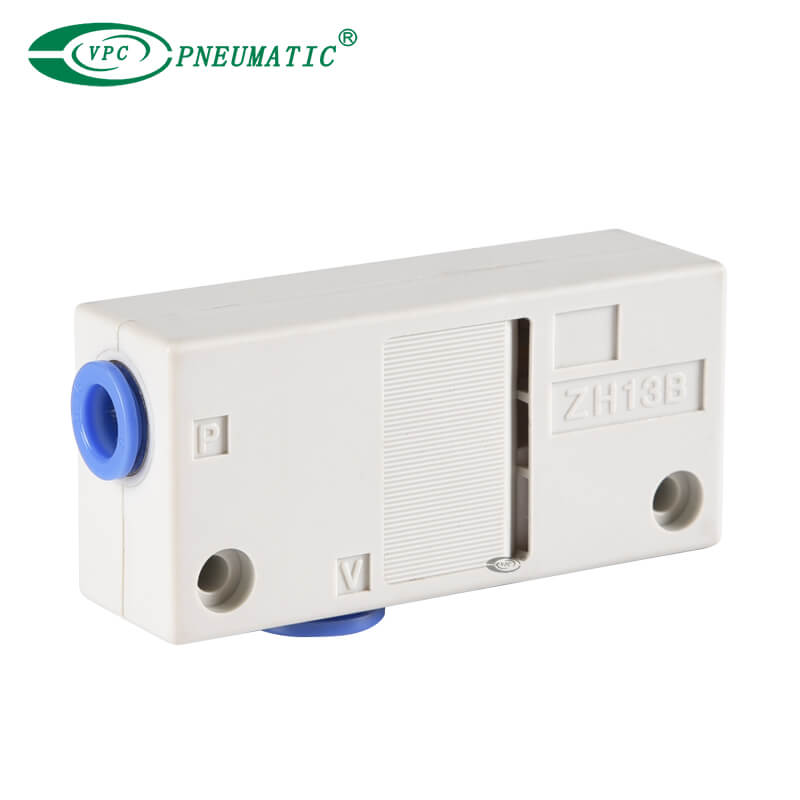

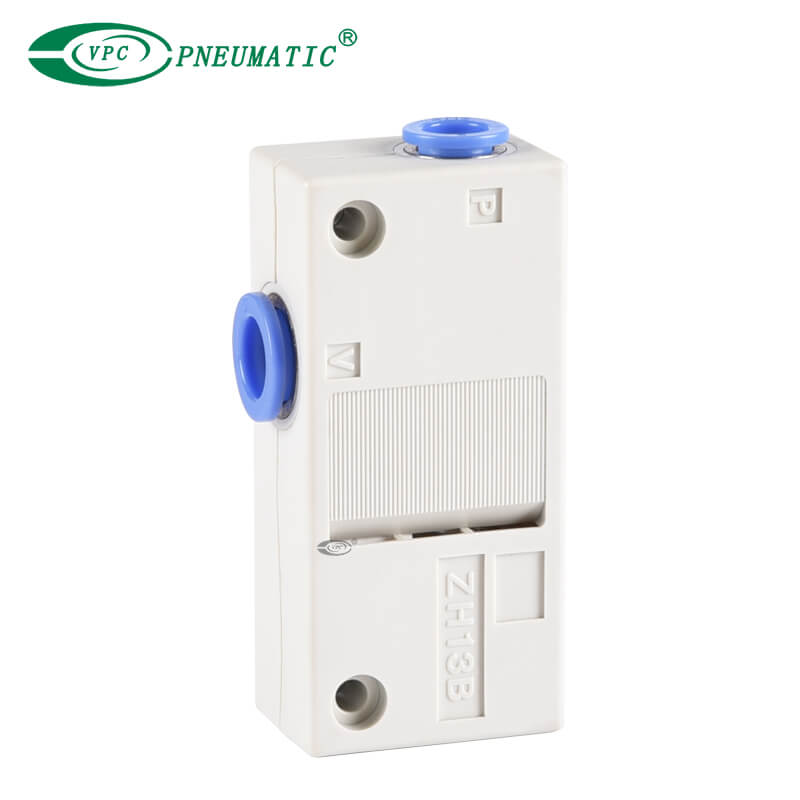

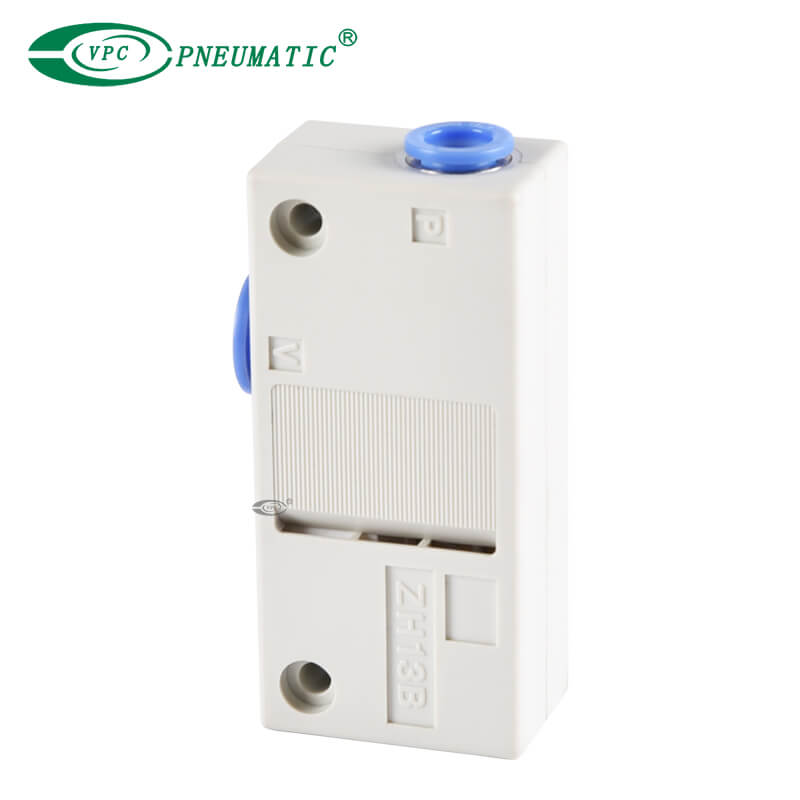

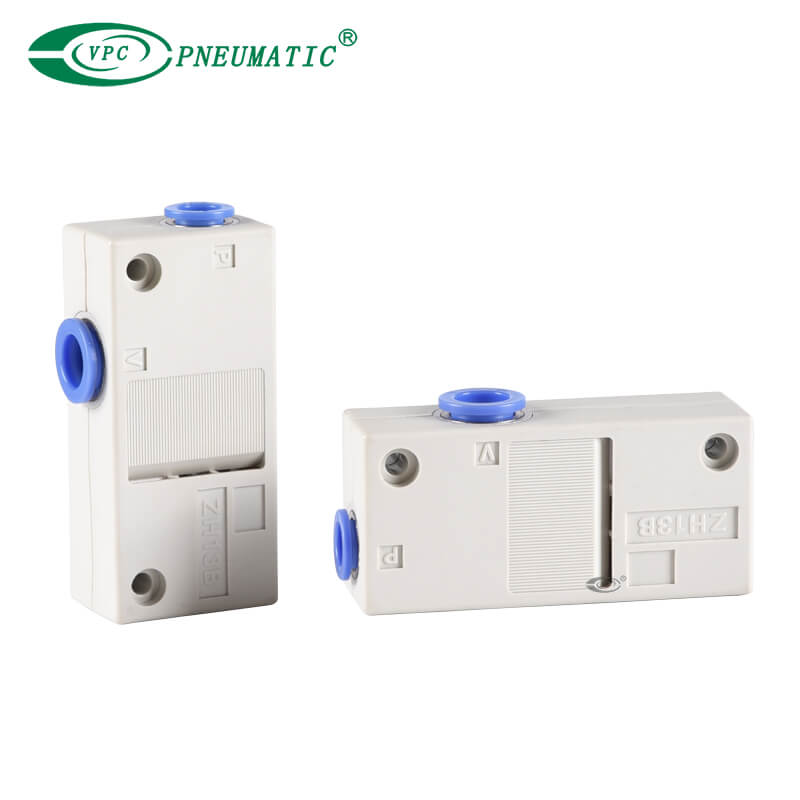

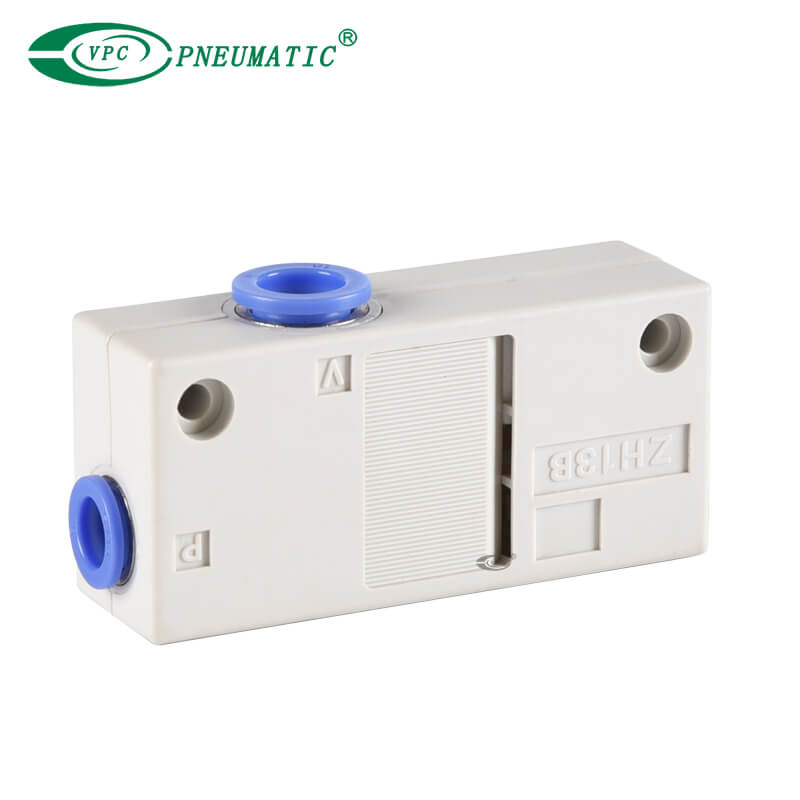

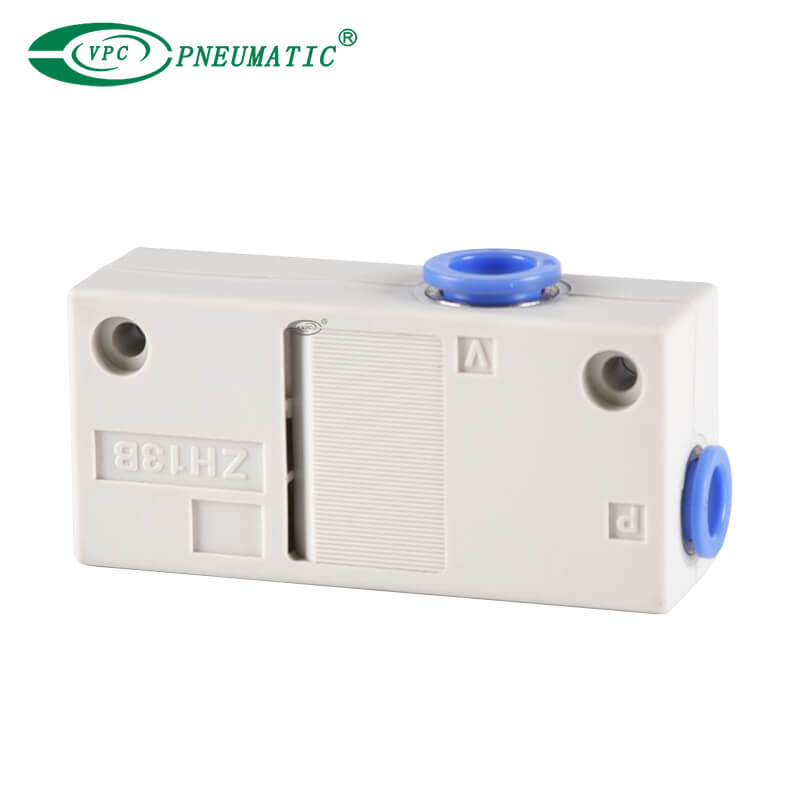

Description du produit
1. Diamètres des buses (mm) : 0,5, 0,7, 1,0, 1,3, 1,5, 1,8, 2,0.
2. Silencieux intégré.
3. Pression de vide maximale : -90 kPa (type S), -66 kPa (type L).
4. Disponible avec des connexions à visser à une touche et NPT, G, Rc.
Spécifications du produit
| Modèle | Diamètre de la buse (mm) | Type de corps | Milieu de travail | Température de fonctionnement | Max.Pression de travail | Pression d'alimentation standard | Pression d'alimentation |
| ZH05B□ | 0.5 | Type de boîte (Silencieux intégré) | Air | 5 à 50 ℃ | 0,6 MPa | 0,45MPa | 0,45MPa |
| ZH07B□ | 0.7 | ||||||
| ZH10B□ | 1.0 | ||||||
| ZH13B□ | 1.3 | ||||||
| ZH05D□ | 0.5 | Type porté sur le corps (Sans silencieux) | |||||
| ZH07D□ | 0.7 | ||||||
| ZH10D□ | 1.0 | ||||||
| ZH13D□ | 1.3 | ||||||
| ZH15D□ | 1.5 | Type porté sur le corps (Sans silencieux) | |||||
| ZH18D□ | 1.8 | ||||||
| ZH20D□ | 2.0 |
| Modèle | Max.pression du vide (kPa)*2 | Max.débit d'aspiration [L/min (ANR)] | Consommation d'air [L/min (ANR)] | Connexion (Une seule touche/à visser) | ||||
| Les types | Tapez L | Les types | Tapez L | Type S/Type L | SOUPER | ACC | ÉCHAPPEMENT | |
| ZH05B□ | -88 | -48 | 5 | 8 | 13 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | — |
| ZH07B□ | 12 | 20 | 25 | |||||
| ZH10B□ | 24 | 34 | 61 | |||||
| ZH13B□ | 40 | 70 | 92 | Φ8, Rc1/8 G1/8 | Φ10, Rc1/4 G1/4 | |||
| ZH05D□ | -88 | -48 | 5 | 8 | 13 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 |
| ZH07D□ | 12 | 20 | 25 | |||||
| ZH10D□ | 24 | 34 | 61 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | Φ8, Rc1/8 G1/8 | ||
| ZH13D□ | 40 | 70 | 92 | Φ8, Rc1/8 G1/8 | Φ10, Rc1/4 G1/4 | Φ10, Rc1/4 G1/4 | ||
| ZH15D□ | -88 | -53 | 55 | 75 | 116 | Φ10, Rc1/4 G1/4 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 |
| ZH18D□ | 65 | 110 | 155 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 | ||
| ZH20D□ | 85 | 135 | 210 | Φ12, Rc3/8 G3/8 | Φ16, Rc1/2 G1/2 | Φ16, Rc1/2 G1/2 | ||

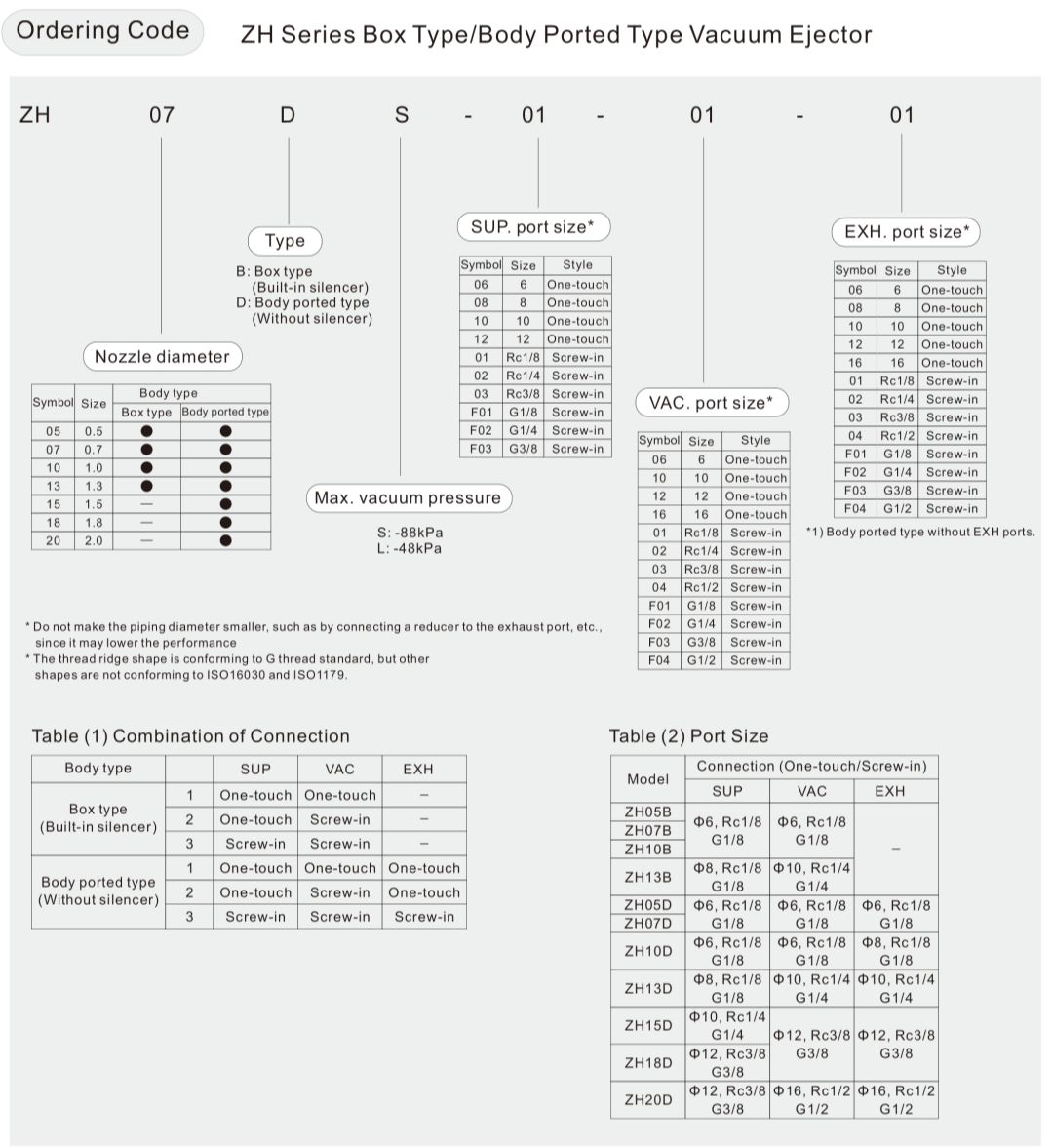

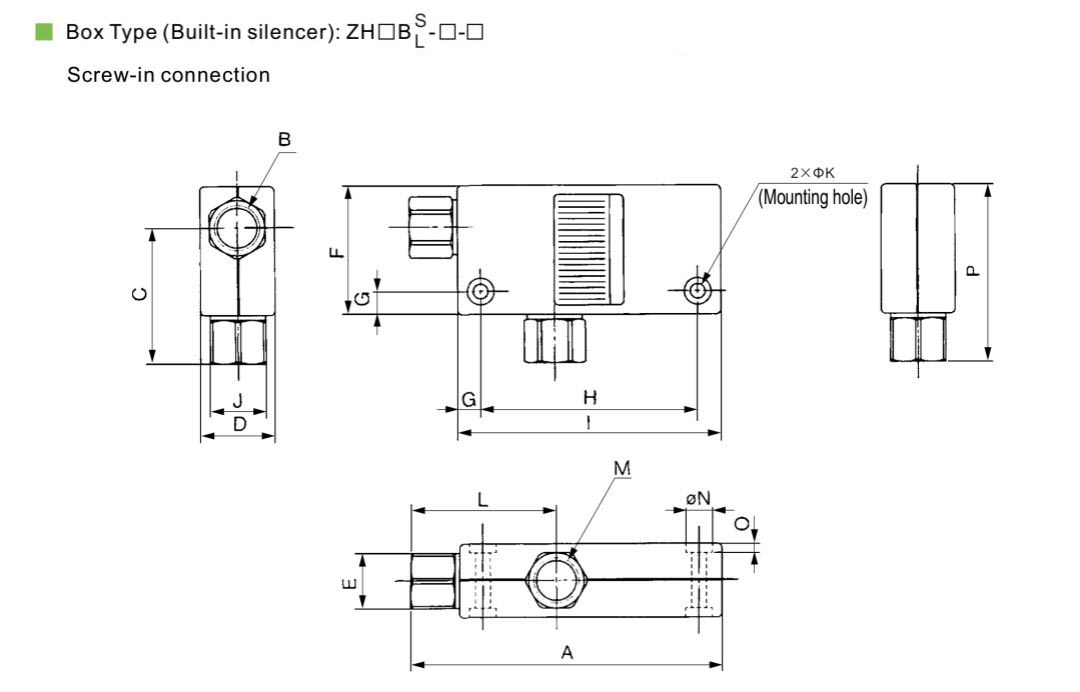

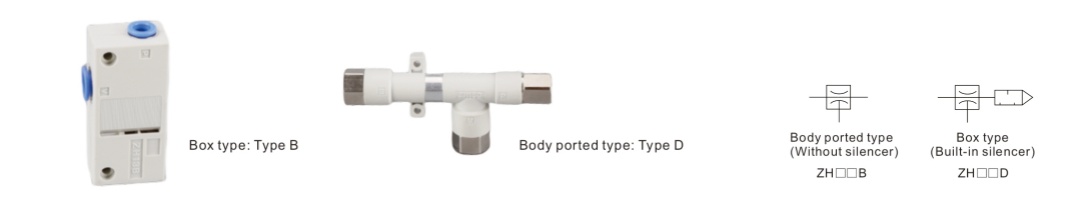

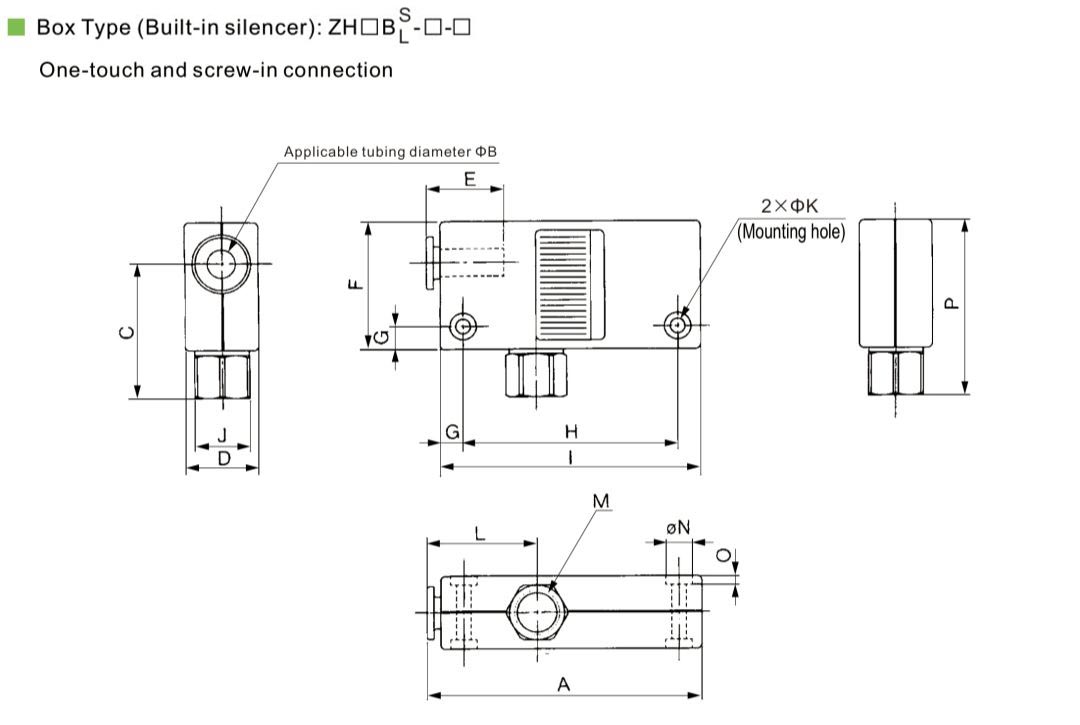

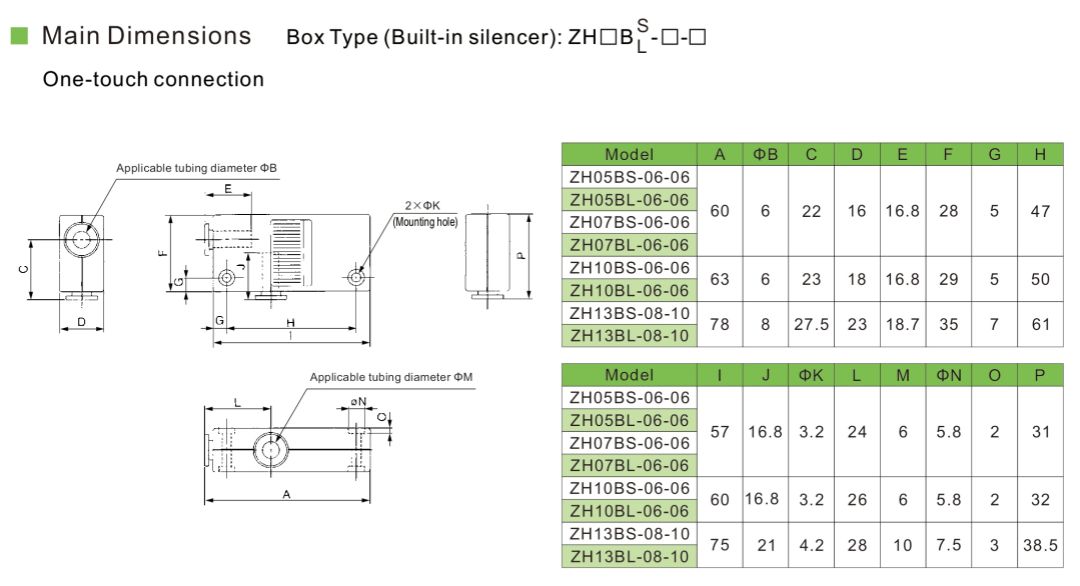

Dimensions principales
| Modèle | A | ΦB | C | D | E | F | G | H | I | J | ΦK | L | M | ΦN | O | P |
| ZH05BL-06-01 | 60 | 6 | 29.5 | 16 | 16.8 | 28 | 5 | 47 | 57 | 12 | 3.2 | 24 | RC1/8 | 5.8 | 2 | 38.5 |
| ZH05BS-06-01 | ||||||||||||||||
| ZH07BS-06-01 | ||||||||||||||||
| ZH07BL-06-01 | ||||||||||||||||
| ZH10BS-06-01 | 63 | 6 | 30.5 | 18 | 16.8 | 29 | 5 | 50 | 60 | 12 | 3.2 | 26 | RC1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-06-01 | ||||||||||||||||
| ZH13BL-08-02 | 78 | 8 | 38.5 | 23 | 18.7 | 35 | 7 | 61 | 75 | 17 | 4.2 | 28 | RC1/4 | 7.5 | 3 | 49.5 |
| ZH13BS-08-02 | ||||||||||||||||
| ZH05BL-06-F01 | 60 | 6 | 29.5 | 16 | 16.8 | 28 | 5 | 47 | 57 | 12 | 3.2 | 24 | G1/8 | 5.8 | 2 | 38.5 |
| ZH05BS-06-F01 | ||||||||||||||||
| ZH07BS-06-F01 | ||||||||||||||||
| ZH07BL-06-F01 | ||||||||||||||||
| ZH10BS-06-F01 | 63 | 6 | 30.5 | 18 | 16.8 | 29 | 5 | 50 | 60 | 12 | 3.2 | 26 | G1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-06-F01 | ||||||||||||||||
| ZH13BL-08-F02 | 78 | 8 | 39 | 23 | 18.7 | 35 | 7 | 61 | 75 | 17 | 4.2 | 28 | G1/4 | 7.5 | 3 | 50 |
| ZH13BS-08-F02 |
| Modèle | A | B | C | D | E | F | G | H | I | J | ΦK | L | M | ΦN | O | P |
| ZH05BL-01-01 | 67.5 | RC1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | RC1/8 | 5.8 | 2 | 38.5 |
| ZH05BS-01-01 | ||||||||||||||||
| ZH07BS-01-01 | ||||||||||||||||
| ZH07BL-01-01 | ||||||||||||||||
| ZH10BS-01-01 | 70.5 | RC1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | RC1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-01-01 | ||||||||||||||||
| ZH13BL-01-02 | 86.5 | RC1/8 | 38.5 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.3 | RC1/4 | 7.5 | 3 | 49.5 |
| ZH13BS-01-02 | ||||||||||||||||
| ZH05BL-F01-F01 | 67.5 | G1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | G1/8 | 5.8 | 2 | 38.5 |
| ZH05BS-F01-F01 | ||||||||||||||||
| ZH07BS-F01-F01 | ||||||||||||||||
| ZH07BL-F01-F01 | ||||||||||||||||
| ZH10BS-F01-F01 | 70.5 | G1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | G1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-F01-F01 | ||||||||||||||||
| ZH13BL-F01-F02 | 86.3 | G1/8 | 39 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.3 | G1/4 | 7.5 | 3 | 50 |
| ZH13BS-F01-F02 |
